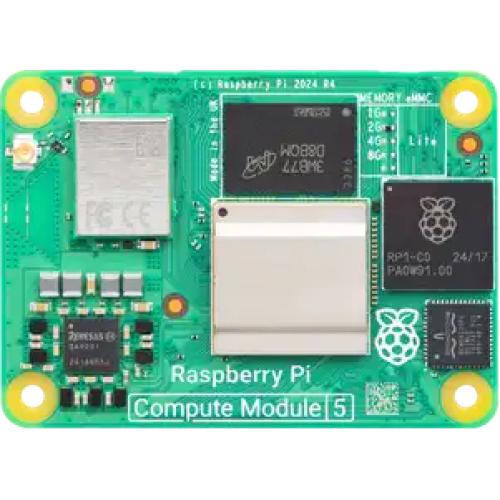

The Raspberry Pi Compute Module 5 4GB Lite brings the processing platform of Raspberry Pi 5 to a compact system-on-module format for custom embedded products. This exact variant has 4GB LPDDR4X memory, no wireless radio, and no onboard eMMC storage.
Key Features
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 processor at 2.4 GHz
- 4GB LPDDR4X-4267 SDRAM with ECC support
- Lite configuration with no onboard eMMC
- No Wi-Fi or Bluetooth on this exact variant
- Dual 4Kp60 HDMI display support
- PCIe 2.0 x1 interface
- Dual USB 3.0 interfaces
- Gigabit Ethernet PHY with IEEE 1588 support
- Designed for custom carrier-board integration
Technical Specifications
| Processor | Broadcom BCM2712, quad-core 64-bit Arm Cortex-A76 at 2.4 GHz |
| Memory | 4GB LPDDR4X-4267 SDRAM |
| Storage | Lite variant, 0GB eMMC; external storage required |
| Wireless | Not included on CM5004000 |
| Video | 2 × HDMI 2.0 interfaces, up to 4Kp60 simultaneously |
| PCIe | 1 × PCIe 2.0 x1 root complex |
| USB | 2 × USB 3.0 and 1 × USB 2.0 interfaces |
| Networking | Gigabit Ethernet PHY with IEEE 1588 |
| Form Factor | 55 × 40 × 4.7 mm system-on-module |
| Carrier Board | Required and sold separately |
Applications
- Industrial Embedded Systems
- Digital Signage
- Automation
- Edge Computing
- Custom Products
- IoT Gateways
What's Included
1 × Raspberry Pi Compute Module 5 4GB Lite module only. Carrier board, storage, cooling, power supply, and accessories are sold separately.
Specifications correspond to the exact CM5004000 variant: 4GB RAM, no wireless, and 0GB eMMC.
